Turntable Vise and
Made in Nebraska, USA!
Click photos to
To see all Lindsay vises and options

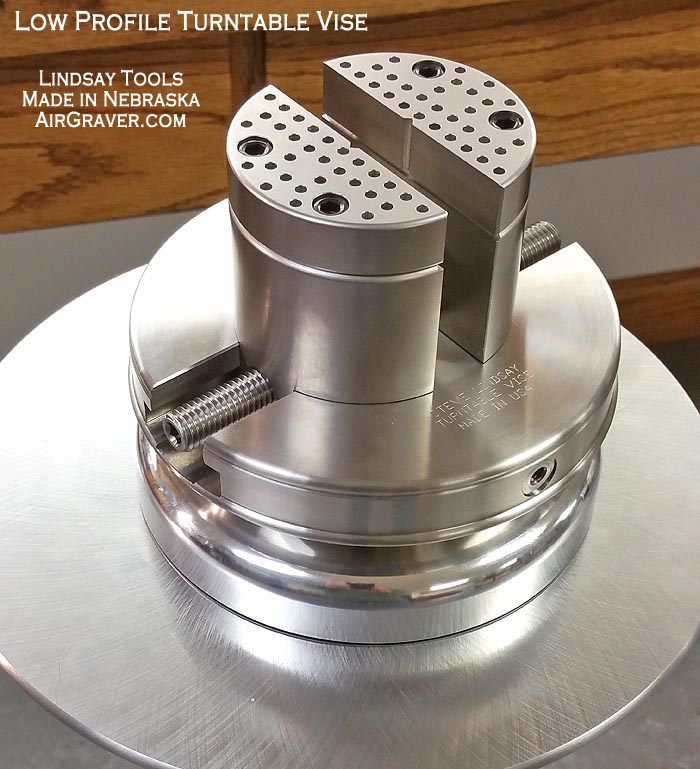

Low Profile Turntable Vise
(Turntable and vise sold separately)
Low Profile Turntable
Stainless Vise Features
**Threaded holes in base jaws for custom
fixtures and homemade jaws.
Made from Stainless with Hardened Jaws, Pin-Plates and Screw
**Includes Pin-Pates, base and wrench
**Diameter 6" (same diameter as Goliath
**Jaw width 3"
**Maximum jaw opening 3.4".
Wider objects can be held using pin plates (5.5") or by making
homemade jaws (wood, plastic, or metal) as needed and using supplied
screws to hold them on.
**Overall height 4.5"
**Jaw height: with Pin-Plates 2.5" -
without Pin-Plates 1.75"
**Weight 15.5 lbs.
Included wrenches and pins
Benefits to low profile
**The low profile allows tilting of the block without the viewing
location moving away from the field of view in a microscope. It stays centered,
in a manner similar to the larger Glide-Lock vise and the Dovetail
low profile vise.
The vise has no bearings. It unitizes the bearings of a
turntable. The absence of bearings in the vise allows a lower
Low Profile Turntable Vise (out of stock)
Price $449 (Price does not include a
(For complete package of a turntable
vise and stand that has a built in turntable, scroll further down on
Vise Leg Support - Patent Pending
Attach this Vise Leg to the Low Profile Turntable Vise to
support a barrel or non-balanced weighed objects on one side to
prevent the vise from tilting from the weight.
(Please click photos to enlarge)
Vise Leg Support - for Low Profile Turntable Stainless Vise (Vise not
Leather Ring Fixture for Vise pin plates
Place these in vise pin plates to hold rings or other items.
the pin plates on the
Low Profile vise, later Goliath
vises and PalmControl® vises.
Find more information about these holders on the
vise accessory page.
Leather Ring Holder Price $56
Inside Ring Holder for Vise pin plates
these in vise pin plates to hold rings from the outside, to
allow inside engraving, as well as access to the top of the
ring. They are made from solid stainless and the faces are
leather lined. Find more information about these holders
on the vise accessory page.
Inside Ring Holder for Vise pin plates
notes about turn-tables
How to center a turntable under
Place your vise on top and approximately in the center of the
turntable under your microscope. Adjust the distance/focus on your
microscope until your project, or the jaws of the vise are in
focus. Next, spin the turntable while looking through the microscope.
To center, while spinning the turntable, look into the scope and push
the whole turntable and/or your scope around until the view seen in
the scope is spinning right in the middle of the field of view.
From here, leave the position of the scope and position of the
turntable alone. To get to another location on the item
being engraved in the field of view, simply push the vise around on
top of the turntable.
This process is the same for the Glidelock vise, even though the
turntable is built into the vise.
Stand and Vise Package
Lindsay TurnTable Stand - Low Profile TurnTable Vise
and - Vise Leg
Find more information on stand page.
Heavy Duty Turntable
(PalmControl Vise in photo for size comparison.
The vise is not included in price. )
10" diameter steel turntable
Internal friction brake
1 1/8" thick
Weight 25 lbs
(3-14-2018 Note: Out of stock )
Thanks for Ray Cover for this
information on a source of an inexpensive turntable that is fairly
heavy and rigid.
The Lindsay Turntable has been built with large ball bearings and a
larger diameter race to increase stability without wobble.
However, if at this time you cannot justify the price of my
turntable, Engraver Ray Cover discovered more cost effective
solution: a Shimpo turntable that can be found on pottery making
craft sites. I assume they are China made. At the bottom of the page of
this link, is
the "Shimpo" turntables list of banding wheels. The one to get is
model BW-25L. It is 9.875" in diameter x 2.25" high and at
$68.88 (at the time of writing) it's hard not to recommend it for
beginners or anyone with a tight budget. I noticed a little
wobble in the one I tested, but it wasn't bad.
